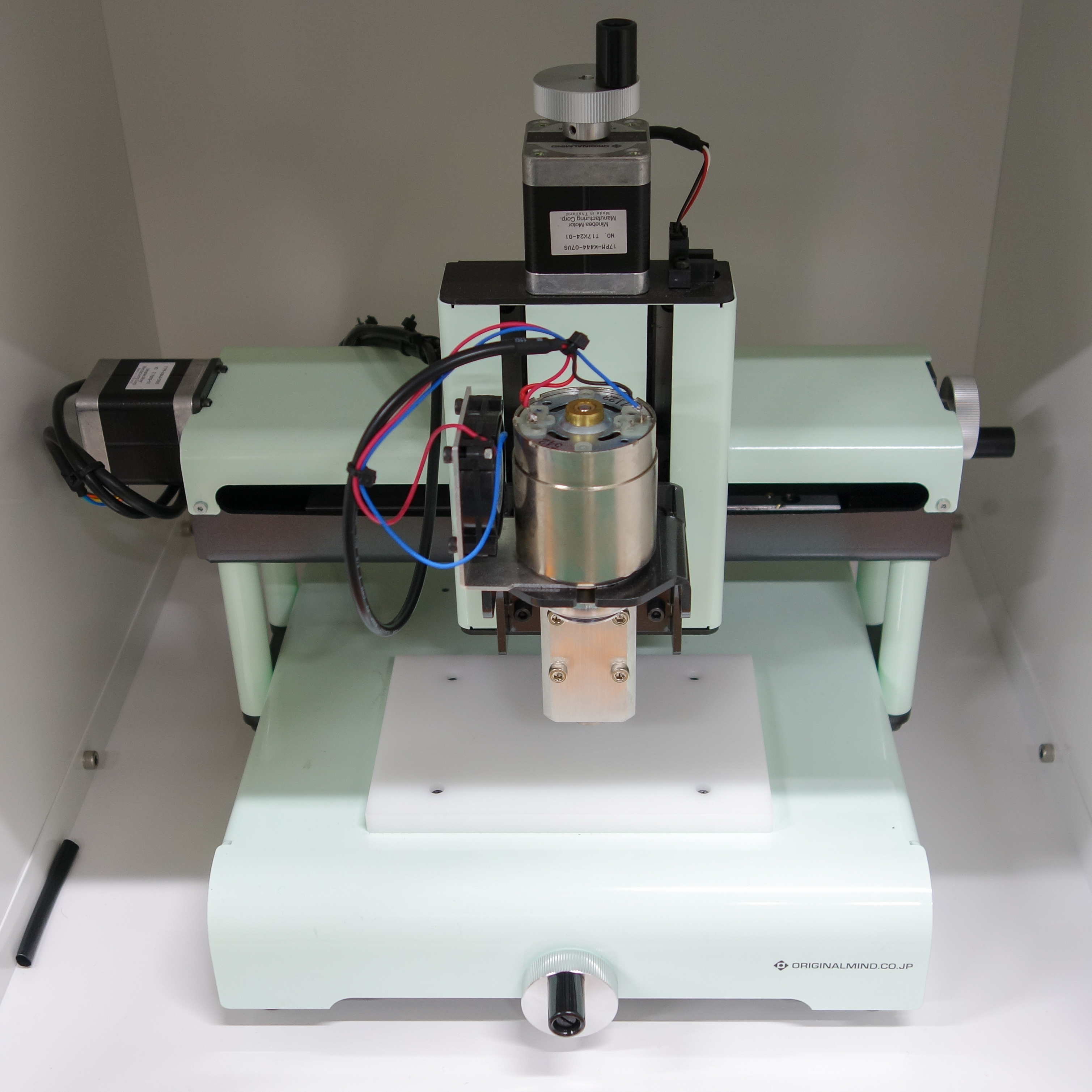

ORINGINALMIND CNC Milling Machine (KitMill Qt100)

　

Overview

This machine is a quiet, compact, desktop-type CNC milling machine. It can support creation of everything from acrylic accessories to aluminum processing.

仕様

Table size: W150mm D100mm
Height of materials that can be attached: 42mm
Materials that can be processed: resin, FRP, wood, aluminum and other alloys, brass
Fixed rotational speed: 4800rpm
Feed mechanism guide type: linear guide
Feed mechanism feed type: M8 meter screws - special resin nut
Feed mechanism stroke: X-axis 156.4mm Y-axis 106.6mm Z-axis 58.4mm
Maximum feed speed: 15mm/sec
Feed mechanism resolution: 0.78um
Suitable CAM: Cut2D/VCarve/Cut3D/MeshCAM/Fusion360/PhotoVCarve
