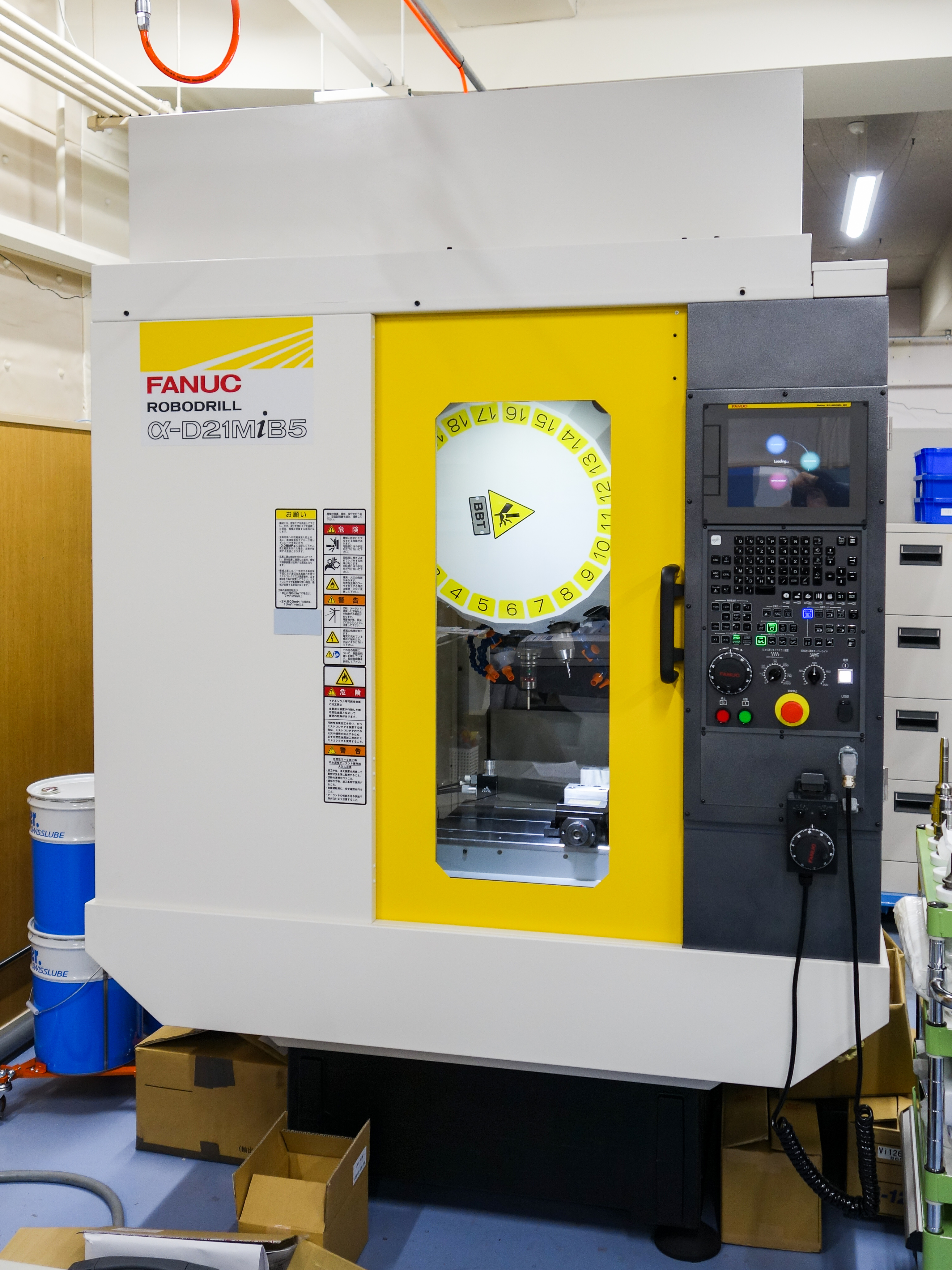

FANUC ROBODRILL（α-D21MiB5）

　

Overview

Characterized by a powerful main axis lineup, it is possible to conduct high-speed, high-precision cutting. Also, it is an accessible, easy-to-use machine.

Spec.

Materials that can be processed: requires confirmation in advance (it can handle many different materials)
Axis movement amount: X500mm Y400mm Z330mm
Table (workspace) size: X650mm Y400mm
Axial rotation speed: Maximum 240-24000min-1 (option)
Fast-forwarding speed: 54m/min
Cutting feed speed: 1mm/min-30000mm/min
Precision for deciding axial locations: less than 0.006mm
