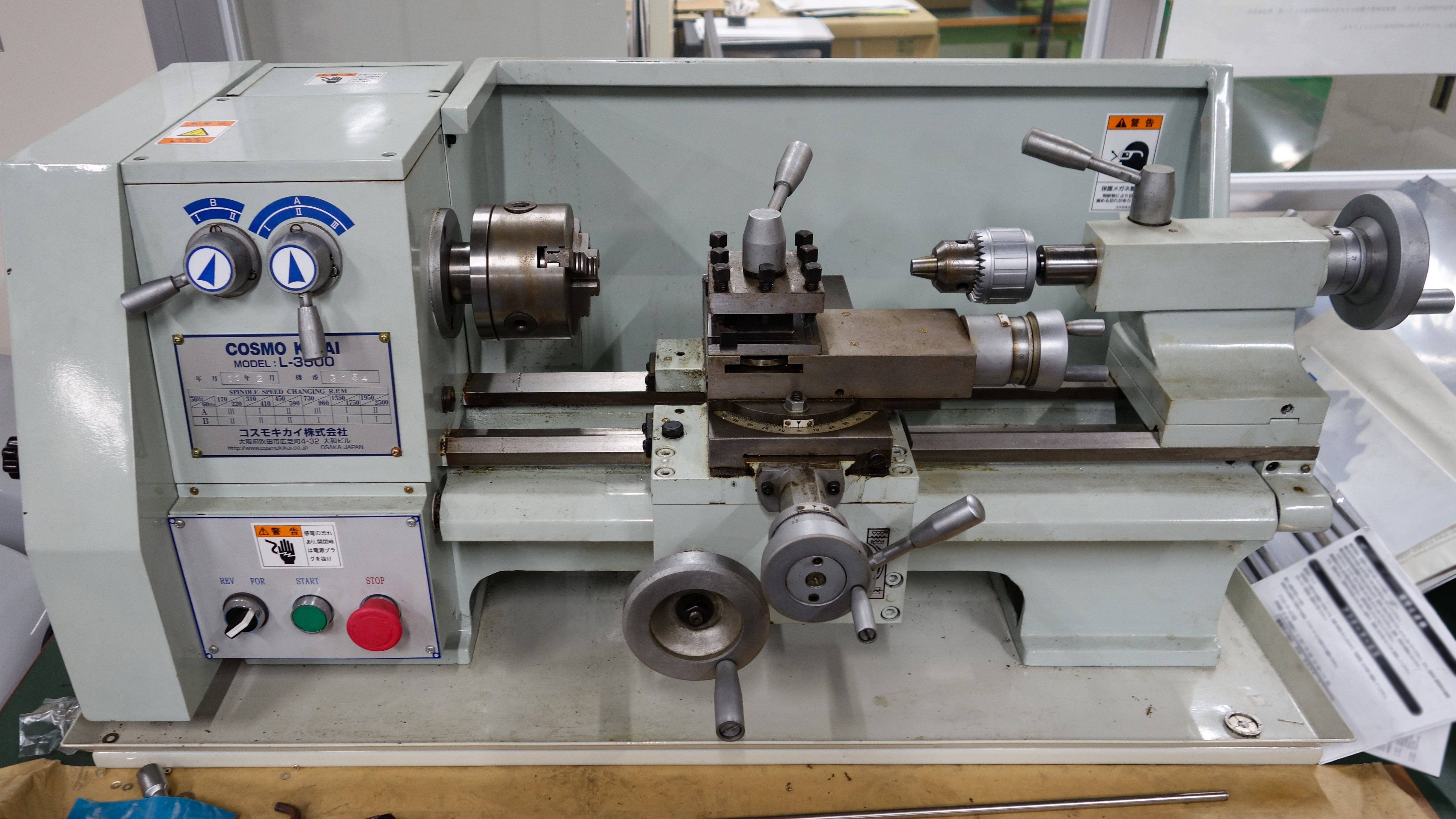

COSMO KIKAI Desktop Precision Lathe (L-3500)

Overview

It is possible to undertake powerful, high-speed cutting and shaving. It is possible to change among six speeds by changing the rotational gears with one press of a button.

Spec.

Swing on the bed: 210mm
Vertical swing: 125mm
Distance from the center: 350mm
Through hole: 19mm
Bed width: 125mm
Vertical movement distance: 210mm
Horizontal movement distance: all areas within the operational range
Tabular sleeve movement distance: 80mm
Millimeter screws: 0.25-3mm 17 types
Inch screws: 8-48 in 17 types
horizontal automatic movement speed: 0.04-0.2mm 5 types
Blade table aperture (18mm): 12mm Angle bite designation (high-speed 12 angle)
axial rotation speed (60Hz): 220/410/590/960/1750/2500
